Datapoints for p + rh138 -> pd139
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.072438e-40 |
| 0.15 | 3.785909e-30 |
| 0.2 | 2.702496e-25 |
| 0.3 | 3.557644e-20 |
| 0.4 | 2.632794e-17 |
| 0.5 | 2.362032e-15 |
| 0.6 | 6.996510e-14 |
| 0.7 | 1.053879e-12 |
| 0.8 | 1.007091e-11 |
| 0.9 | 6.934654e-11 |
| 1 | 3.726760e-10 |
| 1.5 | 1.673455e-07 |
| 2 | 8.819300e-06 |
| 2.5 | 1.487349e-04 |
| 3 | 1.235594e-03 |
| 3.5 | 6.353495e-03 |
| 4 | 2.317697e-02 |
| 4.5 | 6.550830e-02 |
| 5 | 1.523765e-01 |
| 6 | 5.396947e-01 |
| 7 | 1.294770e+00 |
| 8 | 2.409831e+00 |
| 9 | 3.793813e+00 |
| 10 | 5.353895e+00 |

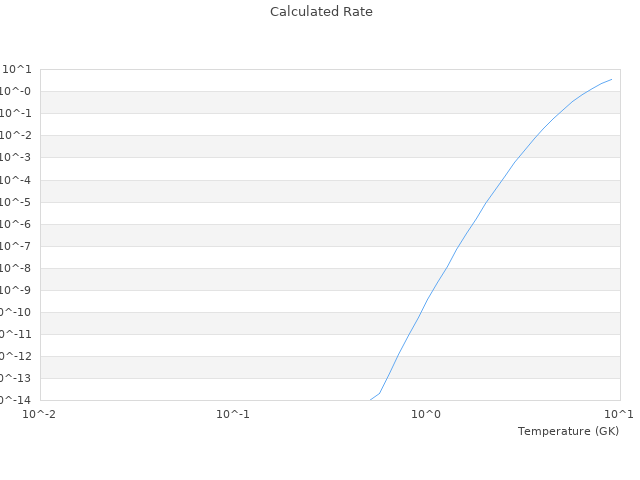

| View Graph | |
