Datapoints for p + rh146 -> pd147
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.036771e-40 |
| 0.15 | 1.505952e-30 |
| 0.2 | 1.224539e-25 |
| 0.3 | 1.633197e-20 |
| 0.4 | 1.146695e-17 |
| 0.5 | 9.802835e-16 |
| 0.6 | 2.809872e-14 |
| 0.7 | 4.157531e-13 |
| 0.8 | 3.950718e-12 |
| 0.9 | 2.730959e-11 |
| 1 | 1.483913e-10 |
| 1.5 | 7.434482e-08 |
| 2 | 4.463531e-06 |
| 2.5 | 8.435892e-05 |
| 3 | 7.655602e-04 |
| 3.5 | 4.191494e-03 |
| 4 | 1.591378e-02 |
| 4.5 | 4.592825e-02 |
| 5 | 1.074213e-01 |
| 6 | 3.723417e-01 |
| 7 | 8.531825e-01 |
| 8 | 1.507926e+00 |
| 9 | 2.273900e+00 |
| 10 | 3.135694e+00 |

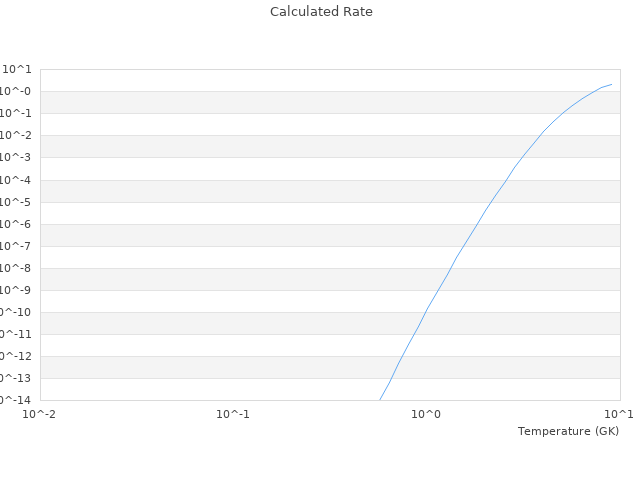

| View Graph | |
