Datapoints for ag106 -> p + pd105
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-320 |
| 0.15 | 2.276085e-213 |
| 0.2 | 1.471260e-159 |
| 0.3 | 3.320117e-105 |
| 0.4 | 1.493839e-77 |
| 0.5 | 1.184782e-60 |
| 0.6 | 3.522392e-49 |
| 0.7 | 7.715099e-41 |
| 0.8 | 1.771964e-34 |
| 0.9 | 1.884182e-29 |
| 1 | 2.275515e-25 |
| 1.5 | 1.100400e-12 |
| 2 | 5.396632e-06 |
| 2.5 | 7.996734e-02 |
| 3 | 5.755912e+01 |
| 3.5 | 6.914657e+03 |
| 4 | 2.622085e+05 |
| 4.5 | 4.517590e+06 |
| 5 | 4.424127e+07 |
| 6 | 1.331588e+09 |
| 7 | 1.441981e+10 |
| 8 | 8.061872e+10 |
| 9 | 2.855412e+11 |
| 10 | 7.254651e+11 |

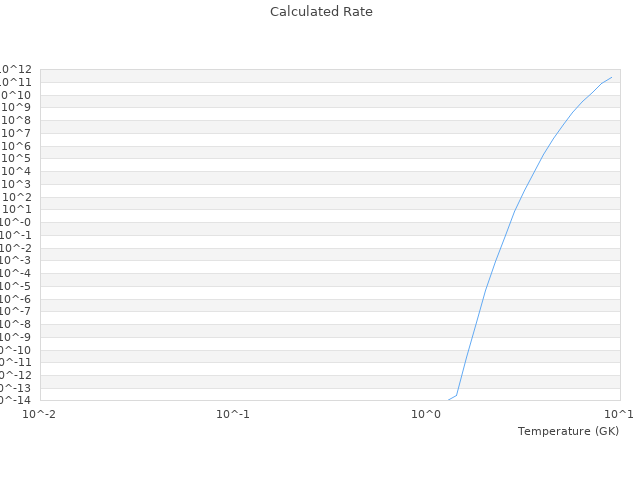

| View Graph | |
