Datapoints for p + pd105 -> he4 + rh102
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.384329e-98 |
| 0.15 | 2.142952e-63 |
| 0.2 | 9.373240e-46 |
| 0.3 | 4.689680e-29 |
| 0.4 | 9.520129e-22 |
| 0.5 | 5.754639e-18 |
| 0.6 | 9.254649e-16 |
| 0.7 | 2.468861e-14 |
| 0.8 | 2.541095e-13 |
| 0.9 | 1.540089e-12 |
| 1 | 6.877116e-12 |
| 1.5 | 2.211359e-09 |
| 2 | 2.796240e-07 |
| 2.5 | 1.939268e-05 |
| 3 | 7.056512e-04 |
| 3.5 | 1.354691e-02 |
| 4 | 1.452873e-01 |
| 4.5 | 9.462248e-01 |
| 5 | 4.106219e+00 |
| 6 | 3.304660e+01 |
| 7 | 1.498581e+02 |
| 8 | 6.826011e+02 |
| 9 | 5.024760e+03 |
| 10 | 8.815830e+04 |

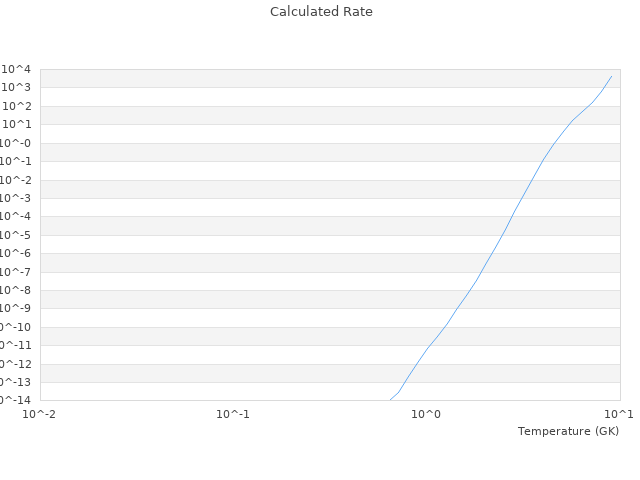

| View Graph | |
