Datapoints for ag108 -> p + pd107
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 7.883961e-237 |
| 0.2 | 5.301392e-177 |
| 0.3 | 7.996724e-117 |
| 0.4 | 2.247610e-86 |
| 0.5 | 7.600566e-68 |
| 0.6 | 2.648405e-55 |
| 0.7 | 3.335077e-46 |
| 0.8 | 2.859892e-39 |
| 0.9 | 8.575059e-34 |
| 1 | 2.408028e-29 |
| 1.5 | 1.730419e-15 |
| 2 | 3.919102e-08 |
| 2.5 | 1.585530e-03 |
| 3 | 2.289166e+00 |
| 3.5 | 4.492213e+02 |
| 4 | 2.406511e+04 |
| 4.5 | 5.271983e+05 |
| 5 | 6.081665e+06 |
| 6 | 2.194857e+08 |
| 7 | 2.593186e+09 |
| 8 | 1.569693e+10 |
| 9 | 6.357214e+10 |
| 10 | 2.043177e+11 |

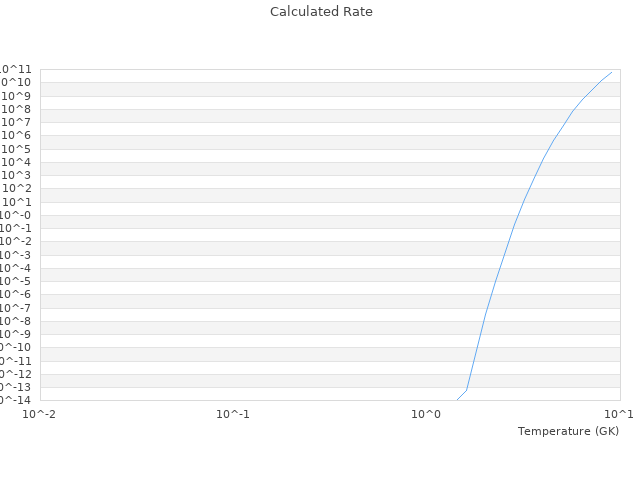

| View Graph | |
