Datapoints for p + pd109 -> he4 + rh106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.683020e-98 |
| 0.15 | 3.442202e-64 |
| 0.2 | 2.155166e-47 |
| 0.3 | 6.578706e-32 |
| 0.4 | 2.590306e-25 |
| 0.5 | 6.369397e-22 |
| 0.6 | 6.677074e-20 |
| 0.7 | 1.576790e-18 |
| 0.8 | 1.757558e-17 |
| 0.9 | 1.318413e-16 |
| 1 | 7.956213e-16 |
| 1.5 | 1.889406e-12 |
| 2 | 1.657557e-09 |
| 2.5 | 5.238048e-07 |
| 3 | 5.567568e-05 |
| 3.5 | 2.117880e-03 |
| 4 | 3.282137e-02 |
| 4.5 | 2.415286e-01 |
| 5 | 9.854194e-01 |
| 6 | 4.970097e+00 |
| 7 | 1.176471e+01 |
| 8 | 3.004124e+01 |
| 9 | 1.609428e+02 |
| 10 | 3.080692e+03 |

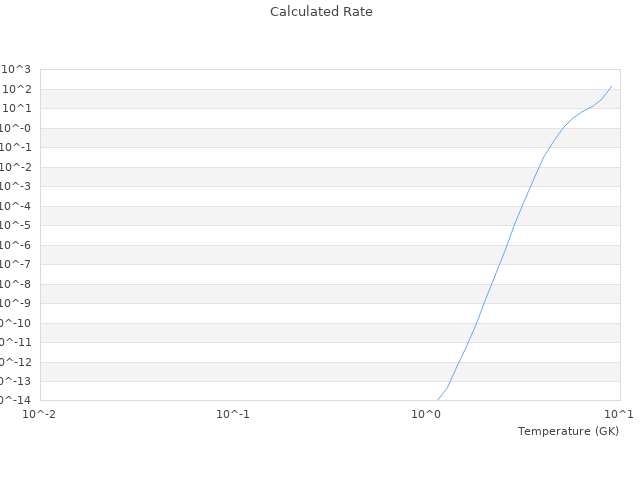

| View Graph | |
