Datapoints for cd113 -> he4 + pd109
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 9.274826e-281 |
| 0.2 | 1.397846e-208 |
| 0.3 | 2.156171e-134 |
| 0.4 | 3.261186e-97 |
| 0.5 | 2.888388e-75 |
| 0.6 | 5.962366e-61 |
| 0.7 | 5.998052e-51 |
| 0.8 | 1.367282e-43 |
| 0.9 | 5.897386e-38 |
| 1 | 1.695001e-33 |
| 1.5 | 3.622803e-20 |
| 2 | 3.872624e-13 |
| 2.5 | 1.658344e-08 |
| 3 | 4.096677e-05 |
| 3.5 | 1.692960e-02 |
| 4 | 1.983673e+00 |
| 4.5 | 8.983473e+01 |
| 5 | 1.934198e+03 |
| 6 | 1.712940e+05 |
| 7 | 3.337919e+06 |
| 8 | 2.659558e+07 |
| 9 | 1.386432e+08 |
| 10 | 6.856310e+08 |

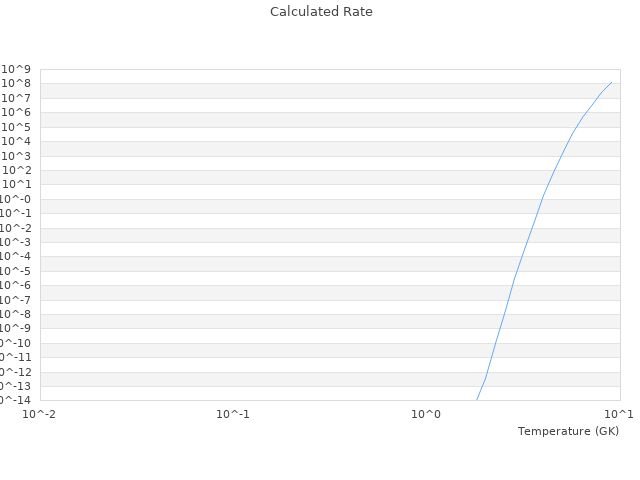

| View Graph | |
