Datapoints for p + pd110 -> he4 + rh107
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.473825e-98 |
| 0.15 | 2.494290e-64 |
| 0.2 | 2.992813e-47 |
| 0.3 | 1.675300e-31 |
| 0.4 | 8.115979e-25 |
| 0.5 | 2.077548e-21 |
| 0.6 | 2.095550e-19 |
| 0.7 | 4.580405e-18 |
| 0.8 | 4.638222e-17 |
| 0.9 | 3.136201e-16 |
| 1 | 1.703002e-15 |
| 1.5 | 2.523055e-12 |
| 2 | 1.589851e-09 |
| 2.5 | 4.100531e-07 |
| 3 | 3.932714e-05 |
| 3.5 | 1.457946e-03 |
| 4 | 2.335871e-02 |
| 4.5 | 1.859378e-01 |
| 5 | 8.494902e-01 |
| 6 | 5.774676e+00 |
| 7 | 1.952725e+01 |
| 8 | 7.310969e+01 |
| 9 | 5.764660e+02 |
| 10 | 1.604524e+04 |

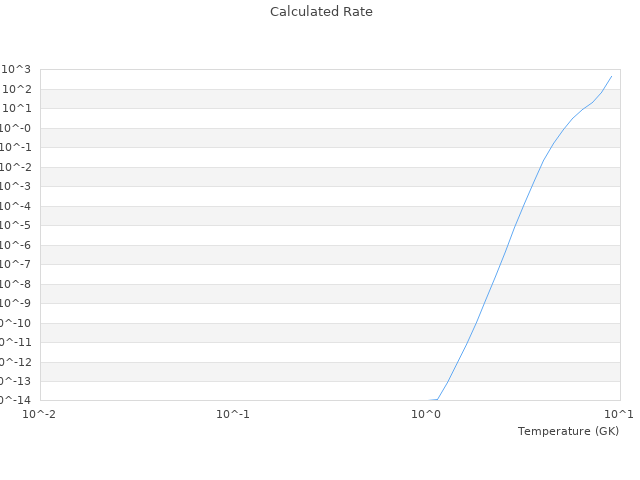

| View Graph | |
