Datapoints for cd122 -> he4 + pd118
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-313 |
| 0.3 | 9.616112e-206 |
| 0.4 | 2.979547e-151 |
| 0.5 | 1.149036e-118 |
| 0.6 | 3.808164e-97 |
| 0.7 | 5.993274e-82 |
| 0.8 | 1.112611e-70 |
| 0.9 | 5.268203e-62 |
| 1 | 4.011723e-55 |
| 1.5 | 1.090381e-34 |
| 2 | 2.580787e-24 |
| 2.5 | 8.874625e-18 |
| 3 | 3.844722e-13 |
| 3.5 | 1.282879e-09 |
| 4 | 7.915933e-07 |
| 4.5 | 1.464596e-04 |
| 5 | 1.092359e-02 |
| 6 | 8.274434e+00 |
| 7 | 9.523793e+02 |
| 8 | 3.071930e+04 |
| 9 | 4.223276e+05 |
| 10 | 3.376941e+06 |

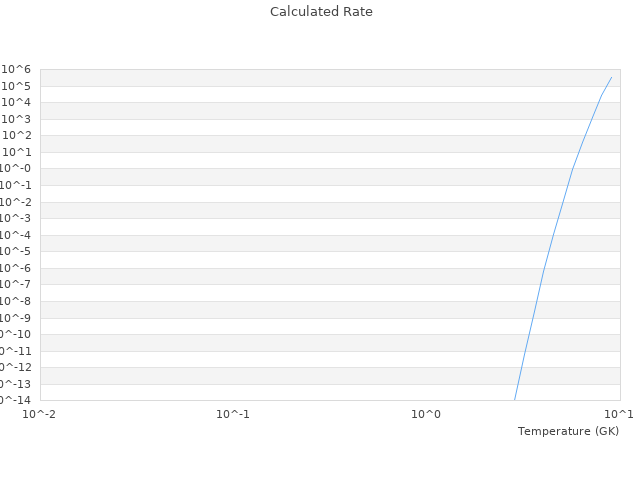

| View Graph | |
