Datapoints for p + pd119 -> he4 + rh116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.651396e-99 |
| 0.15 | 2.357647e-64 |
| 0.2 | 4.298655e-47 |
| 0.3 | 1.989542e-31 |
| 0.4 | 5.954224e-25 |
| 0.5 | 9.585002e-22 |
| 0.6 | 6.544588e-20 |
| 0.7 | 1.043863e-18 |
| 0.8 | 8.227104e-18 |
| 0.9 | 4.563071e-17 |
| 1 | 2.119465e-16 |
| 1.5 | 2.096421e-13 |
| 2 | 1.160355e-10 |
| 2.5 | 2.807229e-08 |
| 3 | 2.522148e-06 |
| 3.5 | 8.597903e-05 |
| 4 | 1.245150e-03 |
| 4.5 | 8.881307e-03 |
| 5 | 3.643143e-02 |
| 6 | 2.097756e-01 |
| 7 | 6.851343e-01 |
| 8 | 3.016151e+00 |
| 9 | 3.585817e+01 |
| 10 | 2.010285e+03 |

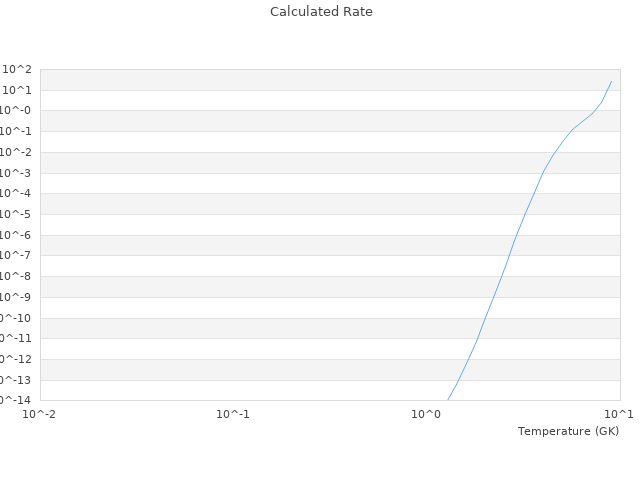

| View Graph | |
