Datapoints for p + pd122 -> ag123
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.596769e-39 |
| 0.15 | 6.705753e-30 |
| 0.2 | 5.339201e-25 |
| 0.3 | 9.867833e-20 |
| 0.4 | 1.019150e-16 |
| 0.5 | 1.225564e-14 |
| 0.6 | 4.673613e-13 |
| 0.7 | 8.750303e-12 |
| 0.8 | 1.008793e-10 |
| 0.9 | 8.170810e-10 |
| 1 | 5.054698e-09 |
| 1.5 | 3.625923e-06 |
| 2 | 2.372107e-04 |
| 2.5 | 4.287990e-03 |
| 3 | 3.484742e-02 |
| 3.5 | 1.653328e-01 |
| 4 | 5.361070e-01 |
| 4.5 | 1.316476e+00 |
| 5 | 2.627253e+00 |
| 6 | 6.786908e+00 |
| 7 | 1.211288e+01 |
| 8 | 1.754689e+01 |
| 9 | 2.286738e+01 |
| 10 | 2.872816e+01 |

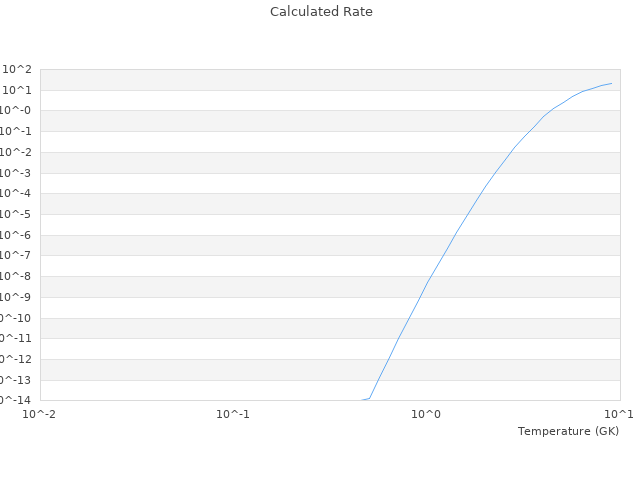

| View Graph | |
