Datapoints for p + pd126 -> he4 + rh123
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.506140e-158 |
| 0.15 | 4.904125e-112 |
| 0.2 | 1.187080e-86 |
| 0.3 | 2.972178e-60 |
| 0.4 | 4.261377e-47 |
| 0.5 | 2.030341e-39 |
| 0.6 | 1.887210e-34 |
| 0.7 | 5.559606e-31 |
| 0.8 | 2.077360e-28 |
| 0.9 | 2.093679e-26 |
| 1 | 8.825724e-25 |
| 1.5 | 1.998236e-19 |
| 2 | 5.686629e-16 |
| 2.5 | 2.653402e-13 |
| 3 | 4.017034e-11 |
| 3.5 | 2.604169e-09 |
| 4 | 8.496998e-08 |
| 4.5 | 1.571338e-06 |
| 5 | 1.816364e-05 |
| 6 | 8.238912e-04 |
| 7 | 1.402129e-02 |
| 8 | 1.412660e-01 |
| 9 | 1.219110e+00 |
| 10 | 1.218425e+01 |

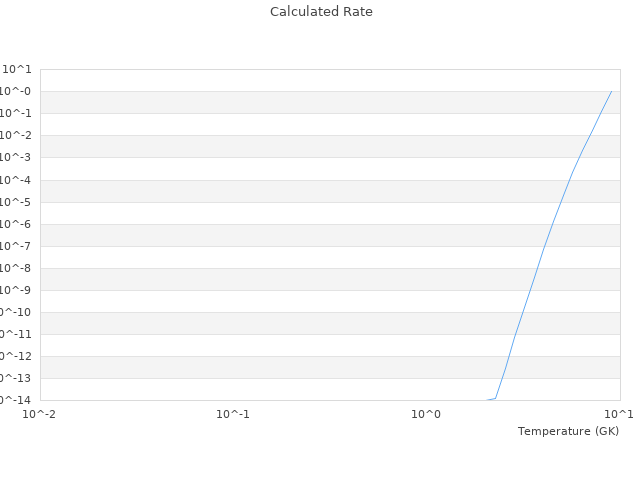

| View Graph | |
