Datapoints for p + pd128 -> n + ag128
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.650110e-36 |
| 0.15 | 1.733971e-26 |
| 0.2 | 1.458568e-21 |
| 0.3 | 2.870875e-16 |
| 0.4 | 3.091274e-13 |
| 0.5 | 3.834936e-11 |
| 0.6 | 1.498239e-09 |
| 0.7 | 2.859772e-08 |
| 0.8 | 3.349428e-07 |
| 0.9 | 2.749240e-06 |
| 1 | 1.720554e-05 |
| 1.5 | 1.294747e-02 |
| 2 | 8.928475e-01 |
| 2.5 | 1.730681e+01 |
| 3 | 1.540127e+02 |
| 3.5 | 8.177377e+02 |
| 4 | 3.031509e+03 |
| 4.5 | 8.687554e+03 |
| 5 | 2.063308e+04 |
| 6 | 7.974050e+04 |
| 7 | 2.276577e+05 |
| 8 | 5.605112e+05 |
| 9 | 1.312053e+06 |
| 10 | 3.114923e+06 |

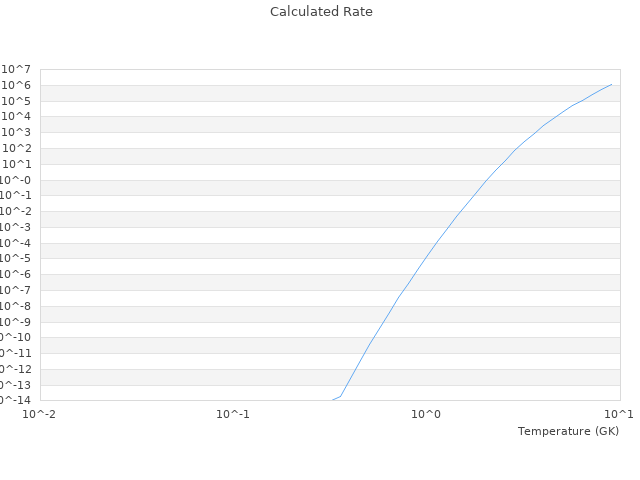

| View Graph | |
