Datapoints for p + pd131 -> ag132
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.967672e-41 |
| 0.15 | 4.038460e-31 |
| 0.2 | 3.297132e-26 |
| 0.3 | 6.319906e-21 |
| 0.4 | 6.718692e-18 |
| 0.5 | 8.246834e-16 |
| 0.6 | 3.185918e-14 |
| 0.7 | 6.007129e-13 |
| 0.8 | 6.944216e-12 |
| 0.9 | 5.622732e-11 |
| 1 | 3.470329e-10 |
| 1.5 | 2.441226e-07 |
| 2 | 1.588040e-05 |
| 2.5 | 2.928837e-04 |
| 3 | 2.492155e-03 |
| 3.5 | 1.266527e-02 |
| 4 | 4.482985e-02 |
| 4.5 | 1.220005e-01 |
| 5 | 2.730059e-01 |
| 6 | 9.077974e-01 |
| 7 | 2.118078e+00 |
| 8 | 4.013455e+00 |
| 9 | 6.767890e+00 |
| 10 | 1.078761e+01 |

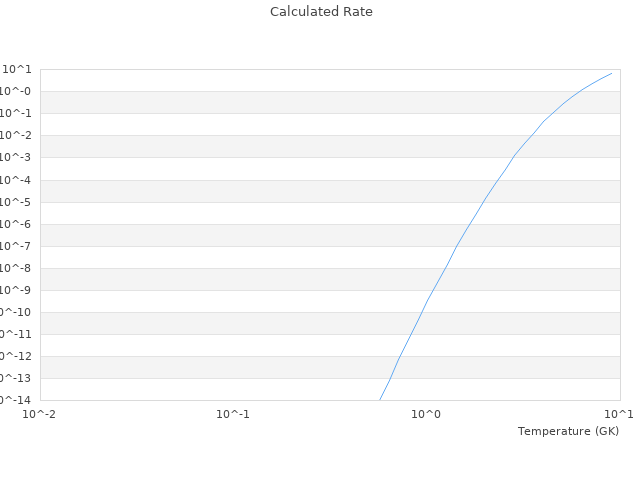

| View Graph | |
