Datapoints for p + pd133 -> he4 + rh130
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.873579e-100 |
| 0.15 | 2.185727e-63 |
| 0.2 | 1.616978e-45 |
| 0.3 | 1.550996e-29 |
| 0.4 | 3.877140e-23 |
| 0.5 | 4.058482e-20 |
| 0.6 | 1.701006e-18 |
| 0.7 | 1.677980e-17 |
| 0.8 | 8.427019e-17 |
| 0.9 | 3.087821e-16 |
| 1 | 9.823262e-16 |
| 1.5 | 2.272920e-13 |
| 2 | 4.753472e-11 |
| 2.5 | 5.647276e-09 |
| 3 | 2.903392e-07 |
| 3.5 | 6.240789e-06 |
| 4 | 6.096124e-05 |
| 4.5 | 3.087870e-04 |
| 5 | 9.391027e-04 |
| 6 | 3.334085e-03 |
| 7 | 7.784399e-03 |
| 8 | 2.855431e-02 |
| 9 | 3.330328e-01 |
| 10 | 2.180165e+01 |

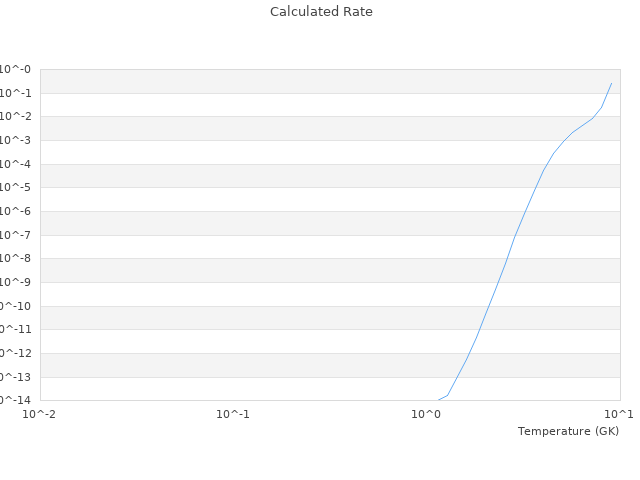

| View Graph | |
