Datapoints for p + pd136 -> he4 + rh133
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.702030e-103 |
| 0.15 | 7.016524e-67 |
| 0.2 | 6.899576e-49 |
| 0.3 | 9.856438e-33 |
| 0.4 | 3.247204e-26 |
| 0.5 | 4.196114e-23 |
| 0.6 | 2.088919e-21 |
| 0.7 | 2.389162e-20 |
| 0.8 | 1.369441e-19 |
| 0.9 | 5.667081e-19 |
| 1 | 2.021536e-18 |
| 1.5 | 7.882320e-16 |
| 2 | 2.702734e-13 |
| 2.5 | 5.222562e-11 |
| 3 | 4.326606e-09 |
| 3.5 | 1.476605e-07 |
| 4 | 2.243776e-06 |
| 4.5 | 1.723558e-05 |
| 5 | 7.716785e-05 |
| 6 | 5.360662e-04 |
| 7 | 2.102172e-03 |
| 8 | 1.096321e-02 |
| 9 | 1.524456e-01 |
| 10 | 9.914401e+00 |

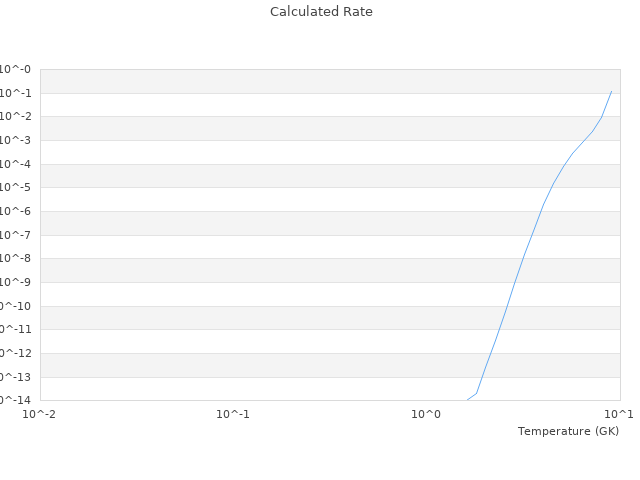

| View Graph | |
