Datapoints for he4 + pd136 -> cd140
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.009651e-258 |
| 0.15 | 2.753736e-185 |
| 0.2 | 2.370171e-143 |
| 0.3 | 1.366630e-97 |
| 0.4 | 1.654518e-73 |
| 0.5 | 6.406753e-59 |
| 0.6 | 2.781777e-49 |
| 0.7 | 1.610268e-42 |
| 0.8 | 1.482387e-37 |
| 0.9 | 8.849563e-34 |
| 1 | 8.023332e-31 |
| 1.5 | 2.675713e-22 |
| 2 | 4.277760e-18 |
| 2.5 | 2.074220e-15 |
| 3 | 1.982276e-13 |
| 3.5 | 7.452488e-12 |
| 4 | 1.490316e-10 |
| 4.5 | 1.844327e-09 |
| 5 | 1.540040e-08 |
| 6 | 4.058727e-07 |
| 7 | 3.667760e-06 |
| 8 | 1.384956e-05 |
| 9 | 2.552166e-05 |
| 10 | 2.614403e-05 |

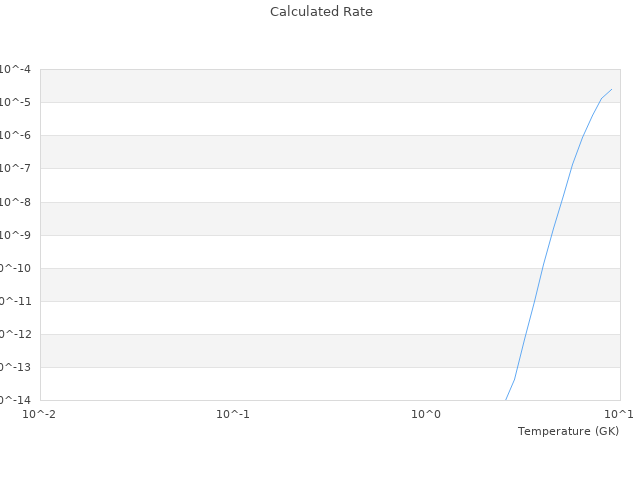

| View Graph | |
