Datapoints for p + pd145 -> n + ag145
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.023750e-36 |
| 0.15 | 6.765713e-26 |
| 0.2 | 6.151414e-21 |
| 0.3 | 1.095084e-15 |
| 0.4 | 1.007363e-12 |
| 0.5 | 1.080059e-10 |
| 0.6 | 3.724376e-09 |
| 0.7 | 6.400739e-08 |
| 0.8 | 6.864999e-07 |
| 0.9 | 5.232774e-06 |
| 1 | 3.076431e-05 |
| 1.5 | 1.901268e-02 |
| 2 | 1.200236e+00 |
| 2.5 | 2.244665e+01 |
| 3 | 1.981455e+02 |
| 3.5 | 1.059615e+03 |
| 4 | 3.989424e+03 |
| 4.5 | 1.166030e+04 |
| 5 | 2.829388e+04 |
| 6 | 1.140722e+05 |
| 7 | 3.376963e+05 |
| 8 | 8.542655e+05 |
| 9 | 2.033242e+06 |
| 10 | 4.855139e+06 |

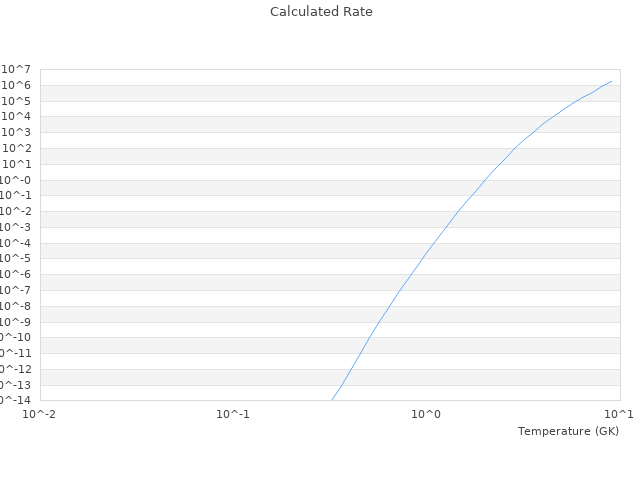

| View Graph | |
