Datapoints for p + pd149 -> he4 + rh146
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.697950e-149 |
| 0.15 | 6.620121e-98 |
| 0.2 | 1.604964e-71 |
| 0.3 | 2.549621e-46 |
| 0.4 | 2.751073e-35 |
| 0.5 | 1.179796e-29 |
| 0.6 | 1.847274e-26 |
| 0.7 | 1.760660e-24 |
| 0.8 | 3.791905e-23 |
| 0.9 | 3.582305e-22 |
| 1 | 2.116959e-21 |
| 1.5 | 1.343517e-18 |
| 2 | 3.304210e-16 |
| 2.5 | 5.178605e-14 |
| 3 | 4.429319e-12 |
| 3.5 | 1.910094e-10 |
| 4 | 4.207075e-09 |
| 4.5 | 5.059105e-08 |
| 5 | 3.643248e-07 |
| 6 | 6.105922e-06 |
| 7 | 4.405863e-05 |
| 8 | 2.797766e-04 |
| 9 | 2.867436e-03 |
| 10 | 7.865986e-02 |

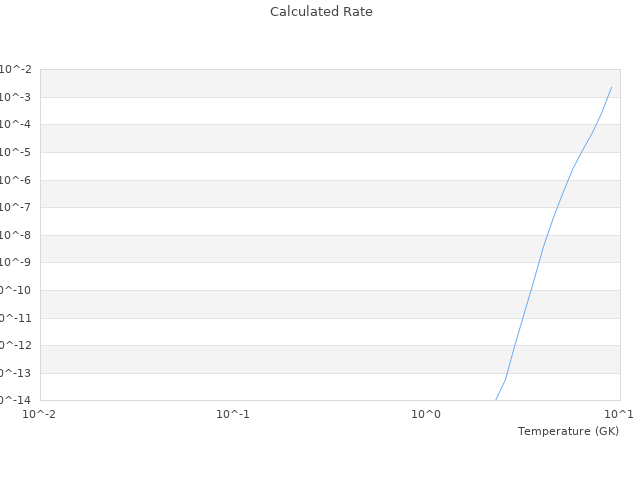

| View Graph | |
