Datapoints for p + pd152 -> n + ag152
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.194860e-36 |
| 0.15 | 2.717678e-26 |
| 0.2 | 2.648603e-21 |
| 0.3 | 5.257382e-16 |
| 0.4 | 5.319867e-13 |
| 0.5 | 6.210020e-11 |
| 0.6 | 2.309483e-09 |
| 0.7 | 4.244340e-08 |
| 0.8 | 4.831538e-07 |
| 0.9 | 3.883319e-06 |
| 1 | 2.393714e-05 |
| 1.5 | 1.759155e-02 |
| 2 | 1.232840e+00 |
| 2.5 | 2.459192e+01 |
| 3 | 2.258246e+02 |
| 3.5 | 1.235873e+03 |
| 4 | 4.709522e+03 |
| 4.5 | 1.382675e+04 |
| 5 | 3.352474e+04 |
| 6 | 1.336526e+05 |
| 7 | 3.886925e+05 |
| 8 | 9.640760e+05 |
| 9 | 2.251444e+06 |
| 10 | 5.287327e+06 |

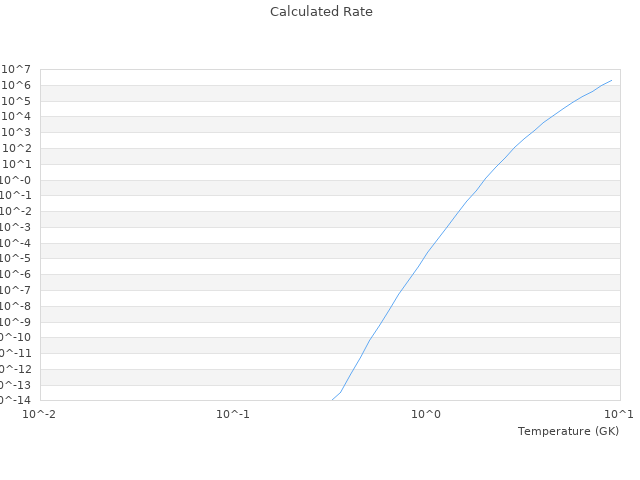

| View Graph | |
