Datapoints for p + pd88 -> n + ag88
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 8.838195e-258 |
| 0.5 | 2.356593e-204 |
| 0.6 | 9.876369e-169 |
| 0.7 | 2.767121e-143 |
| 0.8 | 3.383594e-124 |
| 0.9 | 2.377980e-109 |
| 1 | 1.796310e-97 |
| 1.5 | 7.802230e-62 |
| 2 | 5.151339e-44 |
| 2.5 | 2.529728e-33 |
| 3 | 3.386523e-26 |
| 3.5 | 4.165158e-21 |
| 4 | 2.732634e-17 |
| 4.5 | 2.540801e-14 |
| 5 | 6.017251e-12 |
| 6 | 2.189438e-08 |
| 7 | 7.636461e-06 |
| 8 | 6.146580e-04 |
| 9 | 1.859500e-02 |
| 10 | 2.832624e-01 |

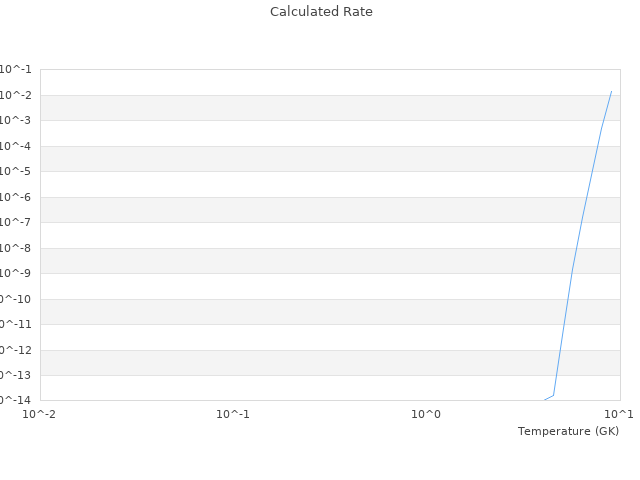

| View Graph | |
