Datapoints for p + cd94 -> he4 + ag91
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-324 |
| 0.2 | 4.310635e-244 |
| 0.3 | 1.847127e-162 |
| 0.4 | 2.028267e-121 |
| 0.5 | 4.928703e-97 |
| 0.6 | 5.294494e-81 |
| 0.7 | 1.044748e-69 |
| 0.8 | 2.487629e-61 |
| 0.9 | 7.251820e-55 |
| 1 | 1.026961e-49 |
| 1.5 | 4.237382e-34 |
| 2 | 9.266681e-26 |
| 2.5 | 2.944225e-20 |
| 3 | 3.123793e-16 |
| 3.5 | 4.007235e-13 |
| 4 | 1.187663e-10 |
| 4.5 | 1.189518e-08 |
| 5 | 5.174577e-07 |
| 6 | 1.583923e-04 |
| 7 | 9.440854e-03 |
| 8 | 2.172538e-01 |
| 9 | 3.190941e+00 |
| 10 | 4.408985e+01 |

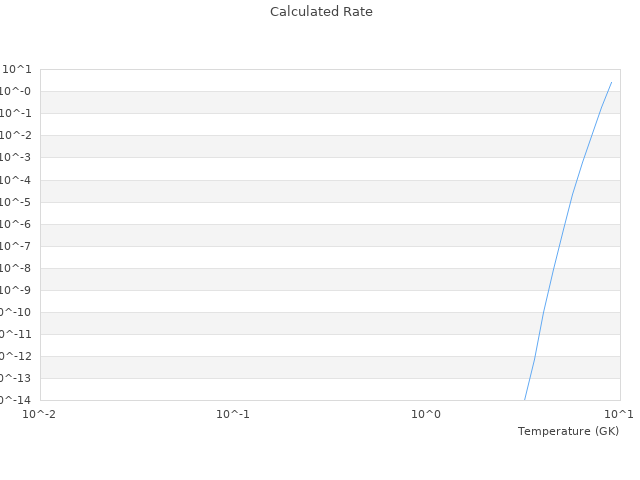

| View Graph | |
