Datapoints for p + ag99 -> he4 + pd96
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.707537e-56 |
| 0.15 | 1.056213e-39 |
| 0.2 | 2.326734e-31 |
| 0.3 | 2.905220e-23 |
| 0.4 | 2.482799e-19 |
| 0.5 | 6.020383e-17 |
| 0.6 | 2.835261e-15 |
| 0.7 | 5.604534e-14 |
| 0.8 | 6.638439e-13 |
| 0.9 | 5.650605e-12 |
| 1 | 3.820379e-11 |
| 1.5 | 7.234750e-08 |
| 2 | 1.848284e-05 |
| 2.5 | 1.248613e-03 |
| 3 | 3.076673e-02 |
| 3.5 | 3.466637e-01 |
| 4 | 2.132809e+00 |
| 4.5 | 8.276068e+00 |
| 5 | 2.281559e+01 |
| 6 | 9.108894e+01 |
| 7 | 2.533207e+02 |
| 8 | 7.731980e+02 |
| 9 | 3.637612e+03 |
| 10 | 3.417784e+04 |

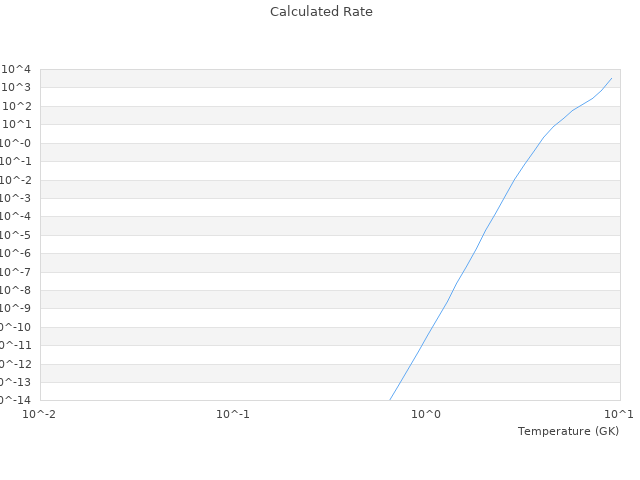

| View Graph | |
