Datapoints for p + ag105 -> cd106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.588759e-37 |
| 0.15 | 2.862646e-27 |
| 0.2 | 2.338271e-22 |
| 0.3 | 4.747296e-17 |
| 0.4 | 5.311073e-14 |
| 0.5 | 6.796320e-12 |
| 0.6 | 2.722150e-10 |
| 0.7 | 5.302775e-09 |
| 0.8 | 6.315761e-08 |
| 0.9 | 5.255624e-07 |
| 1 | 3.325336e-06 |
| 1.5 | 2.546239e-03 |
| 2 | 1.687922e-01 |
| 2.5 | 2.991467e+00 |
| 3 | 2.331004e+01 |
| 3.5 | 1.044558e+02 |
| 4 | 3.167867e+02 |
| 4.5 | 7.233553e+02 |
| 5 | 1.338782e+03 |
| 6 | 2.979423e+03 |
| 7 | 4.646308e+03 |
| 8 | 6.027996e+03 |
| 9 | 7.265912e+03 |
| 10 | 8.767675e+03 |

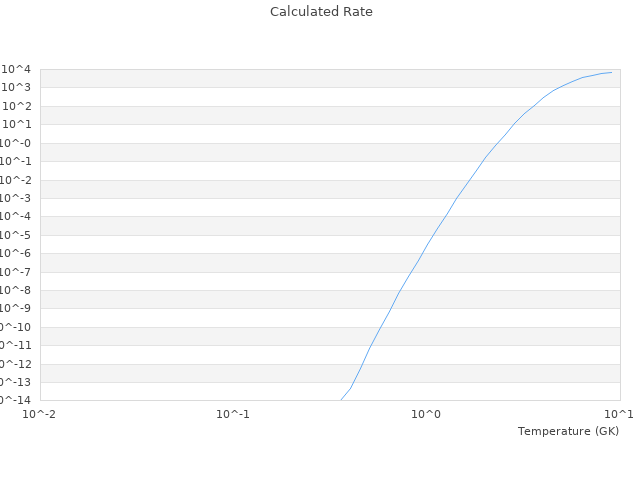

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
