Datapoints for p + pd106 -> n + ag106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.408753e-182 |
| 0.15 | 2.474488e-119 |
| 0.2 | 8.021306e-88 |
| 0.3 | 2.533374e-56 |
| 0.4 | 1.362075e-40 |
| 0.5 | 3.599137e-31 |
| 0.6 | 6.686742e-25 |
| 0.7 | 1.968246e-20 |
| 0.8 | 4.357689e-17 |
| 0.9 | 1.723820e-14 |
| 1 | 2.047124e-12 |
| 1.5 | 3.327729e-06 |
| 2 | 4.338199e-03 |
| 2.5 | 3.402308e-01 |
| 3 | 6.659844e+00 |
| 3.5 | 5.935301e+01 |
| 4 | 3.236616e+02 |
| 4.5 | 1.268891e+03 |
| 5 | 3.932023e+03 |
| 6 | 2.313334e+04 |
| 7 | 8.641432e+04 |
| 8 | 2.331949e+05 |
| 9 | 4.867533e+05 |
| 10 | 8.172217e+05 |

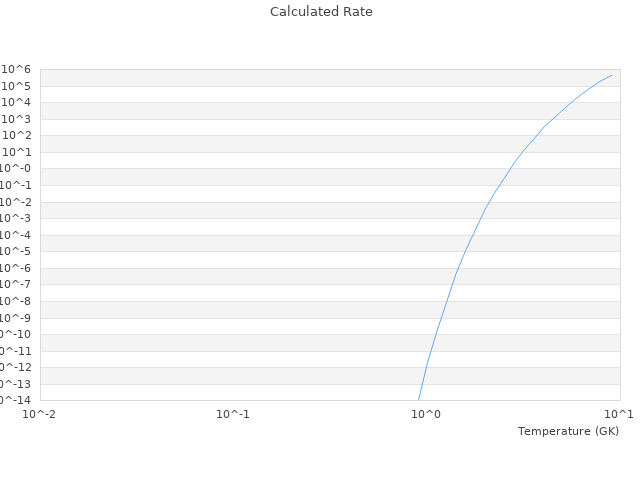

| View Graph | |
