Datapoints for ag117 -> n + ag116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 9.086591e-244 |
| 0.2 | 1.921637e-178 |
| 0.3 | 4.937807e-113 |
| 0.4 | 2.863451e-80 |
| 0.5 | 1.402607e-60 |
| 0.6 | 1.962587e-47 |
| 0.7 | 4.953021e-38 |
| 0.8 | 5.679056e-31 |
| 0.9 | 1.778694e-25 |
| 1 | 4.468302e-21 |
| 1.5 | 7.312596e-08 |
| 2 | 2.911976e-01 |
| 2.5 | 2.532294e+03 |
| 3 | 1.012305e+06 |
| 3.5 | 6.902409e+07 |
| 4 | 1.550295e+09 |
| 4.5 | 1.655606e+10 |
| 5 | 1.048642e+11 |
| 6 | 1.473336e+12 |
| 7 | 8.388944e+12 |
| 8 | 2.710023e+13 |
| 9 | 5.995175e+13 |
| 10 | 1.017441e+14 |

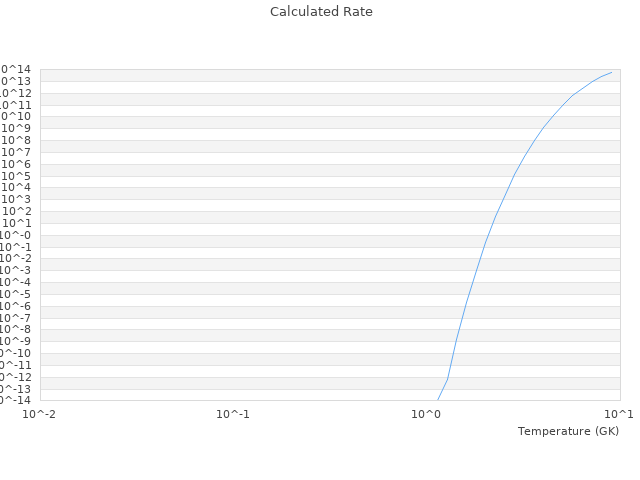

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
