Datapoints for p + ag119 -> he4 + pd116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.536231e-97 |
| 0.15 | 1.206161e-62 |
| 0.2 | 2.450509e-45 |
| 0.3 | 1.403090e-29 |
| 0.4 | 4.404293e-23 |
| 0.5 | 6.500440e-20 |
| 0.6 | 3.741257e-18 |
| 0.7 | 4.797891e-17 |
| 0.8 | 2.971869e-16 |
| 0.9 | 1.286560e-15 |
| 1 | 4.680360e-15 |
| 1.5 | 1.688630e-12 |
| 2 | 5.394906e-10 |
| 2.5 | 1.136535e-07 |
| 3 | 1.217266e-05 |
| 3.5 | 6.187202e-04 |
| 4 | 1.550150e-02 |
| 4.5 | 2.088368e-01 |
| 5 | 1.681623e+00 |
| 6 | 3.594808e+01 |
| 7 | 3.425183e+02 |
| 8 | 2.923322e+03 |
| 9 | 3.974384e+04 |
| 10 | 1.377975e+06 |

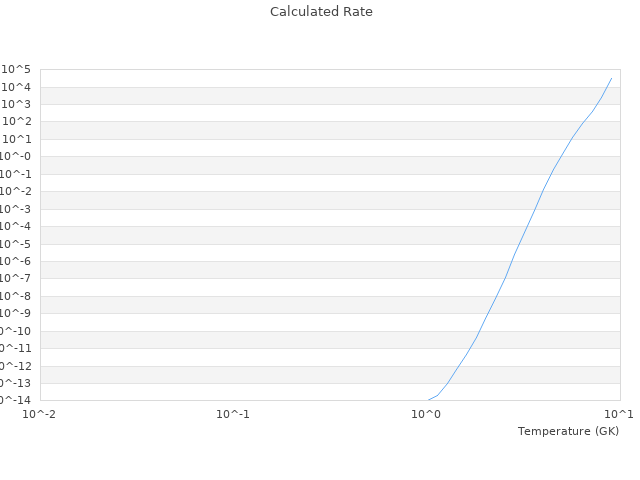

| View Graph | |
