Datapoints for p + ag137 -> he4 + pd134
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.868476e-103 |
| 0.15 | 1.852764e-65 |
| 0.2 | 3.502428e-47 |
| 0.3 | 7.575518e-31 |
| 0.4 | 2.513419e-24 |
| 0.5 | 2.885998e-21 |
| 0.6 | 1.227313e-19 |
| 0.7 | 1.188929e-18 |
| 0.8 | 5.791412e-18 |
| 0.9 | 2.052711e-17 |
| 1 | 6.329489e-17 |
| 1.5 | 1.350280e-14 |
| 2 | 2.932471e-12 |
| 2.5 | 3.907428e-10 |
| 3 | 2.354310e-08 |
| 3.5 | 6.066198e-07 |
| 4 | 7.166884e-06 |
| 4.5 | 4.390806e-05 |
| 5 | 1.605604e-04 |
| 6 | 7.977171e-04 |
| 7 | 2.460329e-03 |
| 8 | 1.115269e-02 |
| 9 | 1.497872e-01 |
| 10 | 1.050842e+01 |

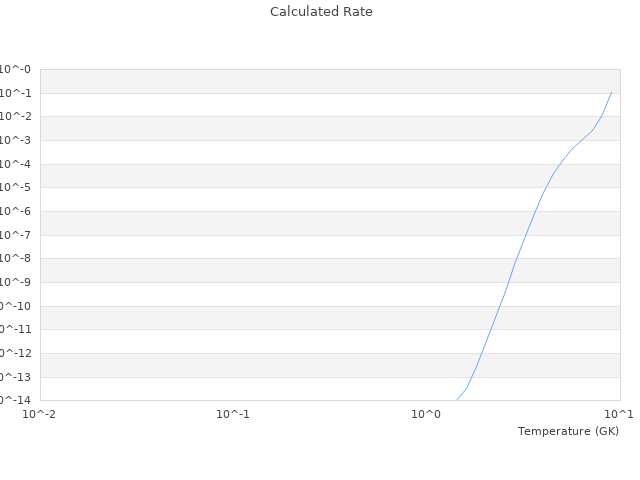

| View Graph | |
