Datapoints for he4 + pd153 -> p + ag156
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-317 |
| 0.2 | 1.822357e-235 |
| 0.3 | 8.040435e-156 |
| 0.4 | 5.836531e-118 |
| 0.5 | 2.305983e-96 |
| 0.6 | 1.461733e-82 |
| 0.7 | 5.292022e-73 |
| 0.8 | 5.751516e-66 |
| 0.9 | 1.563812e-60 |
| 1 | 3.606500e-56 |
| 1.5 | 2.350054e-42 |
| 2 | 3.079709e-34 |
| 2.5 | 1.591093e-28 |
| 3 | 3.062167e-24 |
| 3.5 | 5.921491e-21 |
| 4 | 2.055103e-18 |
| 4.5 | 1.917317e-16 |
| 5 | 6.559920e-15 |
| 6 | 9.964020e-13 |
| 7 | 3.498672e-11 |
| 8 | 9.165803e-10 |
| 9 | 4.405822e-08 |
| 10 | 7.874595e-06 |

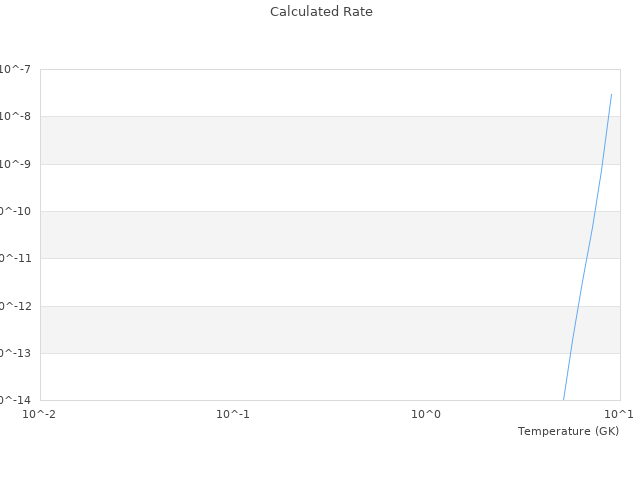

| View Graph | |
