Datapoints for p + ag157 -> he4 + pd154
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.712011e-153 |
| 0.15 | 3.100868e-100 |
| 0.2 | 5.794015e-73 |
| 0.3 | 5.779223e-47 |
| 0.4 | 1.212971e-35 |
| 0.5 | 6.469787e-30 |
| 0.6 | 1.034879e-26 |
| 0.7 | 9.191018e-25 |
| 0.8 | 1.767230e-23 |
| 0.9 | 1.463989e-22 |
| 1 | 7.549086e-22 |
| 1.5 | 2.633500e-19 |
| 2 | 4.372888e-17 |
| 2.5 | 5.453648e-15 |
| 3 | 4.154744e-13 |
| 3.5 | 1.721444e-11 |
| 4 | 3.832176e-10 |
| 4.5 | 4.816448e-09 |
| 5 | 3.704551e-08 |
| 6 | 7.326323e-07 |
| 7 | 6.319006e-06 |
| 8 | 4.749401e-05 |
| 9 | 5.634719e-04 |
| 10 | 1.738196e-02 |

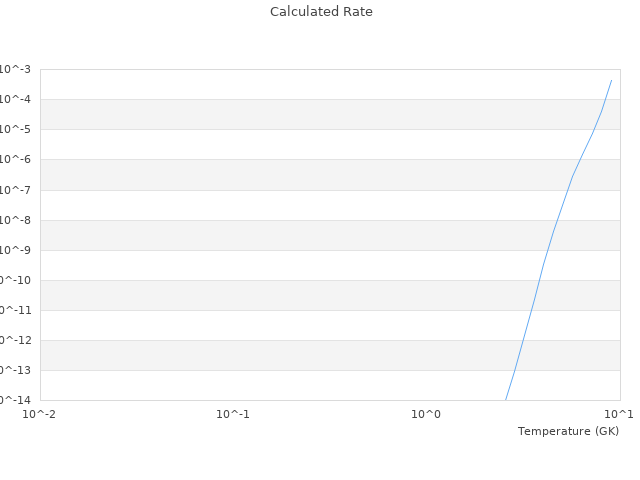

| View Graph | |
