Datapoints for sn138 -> he4 + cd134
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-316 |
| 0.3 | 1.513535e-209 |
| 0.4 | 8.190882e-155 |
| 0.5 | 8.697730e-122 |
| 0.6 | 7.880832e-100 |
| 0.7 | 2.996230e-84 |
| 0.8 | 1.164955e-72 |
| 0.9 | 1.011707e-63 |
| 1 | 1.259462e-56 |
| 1.5 | 1.248854e-35 |
| 2 | 3.949733e-25 |
| 2.5 | 1.255060e-18 |
| 3 | 4.483279e-14 |
| 3.5 | 1.221044e-10 |
| 4 | 6.331334e-08 |
| 4.5 | 1.023599e-05 |
| 5 | 6.912138e-04 |
| 6 | 4.579714e-01 |
| 7 | 4.618615e+01 |
| 8 | 1.183608e+03 |
| 9 | 1.074189e+04 |
| 10 | 4.377531e+04 |

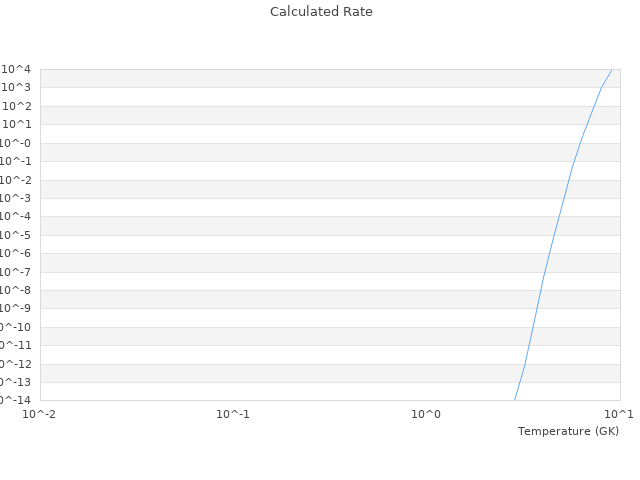

| View Graph | |
