Datapoints for p + cd138 -> he4 + ag135
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.927971e-106 |
| 0.15 | 2.639565e-68 |
| 0.2 | 1.136203e-49 |
| 0.3 | 5.756022e-33 |
| 0.4 | 3.026235e-26 |
| 0.5 | 4.766198e-23 |
| 0.6 | 2.603246e-21 |
| 0.7 | 3.127864e-20 |
| 0.8 | 1.850361e-19 |
| 0.9 | 7.851946e-19 |
| 1 | 2.867822e-18 |
| 1.5 | 1.276386e-15 |
| 2 | 5.030927e-13 |
| 2.5 | 1.088865e-10 |
| 3 | 9.722038e-09 |
| 3.5 | 3.440690e-07 |
| 4 | 5.244290e-06 |
| 4.5 | 3.936832e-05 |
| 5 | 1.691043e-04 |
| 6 | 1.052730e-03 |
| 7 | 3.722217e-03 |
| 8 | 1.835734e-02 |
| 9 | 2.616907e-01 |
| 10 | 1.941882e+01 |

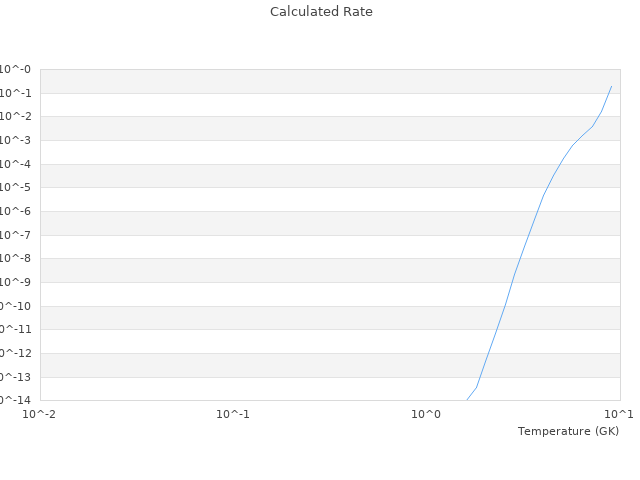

| View Graph | |
