Datapoints for p + sn136 -> he4 + in133
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.985924e-105 |
| 0.15 | 1.293030e-66 |
| 0.2 | 1.435638e-47 |
| 0.3 | 1.693099e-30 |
| 0.4 | 1.270386e-23 |
| 0.5 | 2.413153e-20 |
| 0.6 | 1.479416e-18 |
| 0.7 | 1.923906e-17 |
| 0.8 | 1.205562e-16 |
| 0.9 | 5.339331e-16 |
| 1 | 2.012184e-15 |
| 1.5 | 9.211406e-13 |
| 2 | 3.158179e-10 |
| 2.5 | 5.246906e-08 |
| 3 | 3.290731e-06 |
| 3.5 | 7.720438e-05 |
| 4 | 7.551789e-04 |
| 4.5 | 3.595993e-03 |
| 5 | 9.850843e-03 |
| 6 | 2.674408e-02 |
| 7 | 4.844468e-02 |
| 8 | 1.527350e-01 |
| 9 | 1.813880e+00 |
| 10 | 1.508603e+02 |

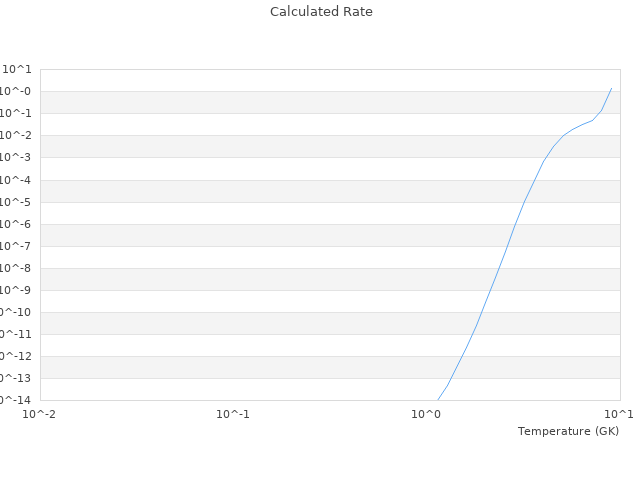

| View Graph | |
