Datapoints for xe148 -> he4 + te144
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 5.420990e-280 |
| 0.3 | 4.607971e-188 |
| 0.4 | 2.061627e-140 |
| 0.5 | 2.485275e-111 |
| 0.6 | 8.645309e-92 |
| 0.7 | 8.707952e-78 |
| 0.8 | 2.824510e-67 |
| 0.9 | 4.207882e-59 |
| 1 | 1.441675e-52 |
| 1.5 | 5.998372e-33 |
| 2 | 5.293188e-23 |
| 2.5 | 7.426006e-17 |
| 3 | 1.342410e-12 |
| 3.5 | 1.955288e-09 |
| 4 | 5.628779e-07 |
| 4.5 | 5.241936e-05 |
| 5 | 2.122482e-03 |
| 6 | 5.768467e-01 |
| 7 | 2.866106e+01 |
| 8 | 4.326237e+02 |
| 9 | 2.726366e+03 |
| 10 | 8.929310e+03 |

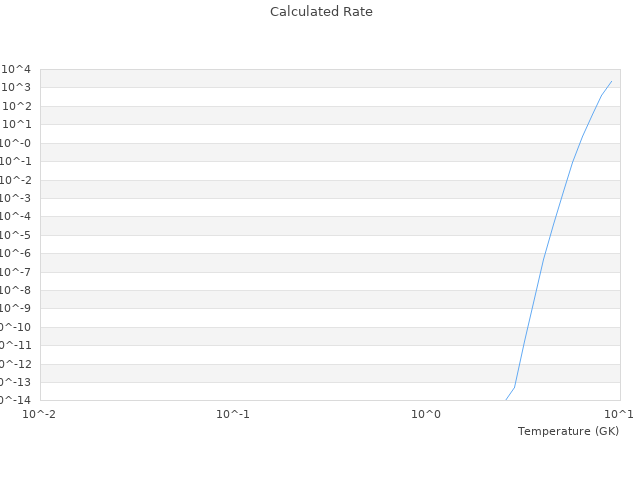

| View Graph | |
