Datapoints for cs117 -> he4 + i113
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.312244e-61 |
| 0.15 | 7.144288e-41 |
| 0.2 | 3.252258e-31 |
| 0.3 | 8.420124e-22 |
| 0.4 | 5.386091e-17 |
| 0.5 | 6.474933e-14 |
| 0.6 | 1.137498e-11 |
| 0.7 | 6.700503e-10 |
| 0.8 | 1.971330e-08 |
| 0.9 | 3.592967e-07 |
| 1 | 4.607880e-06 |
| 1.5 | 6.626542e-02 |
| 2 | 4.747330e+01 |
| 2.5 | 6.219778e+03 |
| 3 | 2.621648e+05 |
| 3.5 | 4.881756e+06 |
| 4 | 4.921211e+07 |
| 4.5 | 3.092492e+08 |
| 5 | 1.342902e+09 |
| 6 | 1.122867e+10 |
| 7 | 4.495329e+10 |
| 8 | 1.153298e+11 |
| 9 | 2.319807e+11 |
| 10 | 4.230990e+11 |

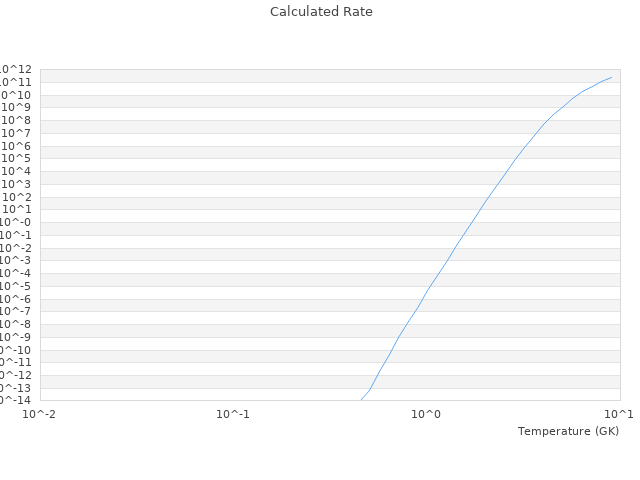

| View Graph | |
