Datapoints for cs118 -> he4 + i114
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.176861e-58 |
| 0.15 | 9.129078e-43 |
| 0.2 | 2.077395e-35 |
| 0.3 | 1.116807e-27 |
| 0.4 | 3.960352e-23 |
| 0.5 | 7.776721e-20 |
| 0.6 | 3.221861e-17 |
| 0.7 | 4.929713e-15 |
| 0.8 | 3.715751e-13 |
| 0.9 | 1.635977e-11 |
| 1 | 4.701565e-10 |
| 1.5 | 1.283217e-04 |
| 2 | 4.695554e-01 |
| 2.5 | 1.493419e+02 |
| 3 | 1.010311e+04 |
| 3.5 | 2.402149e+05 |
| 4 | 2.735430e+06 |
| 4.5 | 1.828194e+07 |
| 5 | 8.248255e+07 |
| 6 | 7.498857e+08 |
| 7 | 3.482442e+09 |
| 8 | 1.121933e+10 |
| 9 | 3.030251e+10 |
| 10 | 7.756350e+10 |

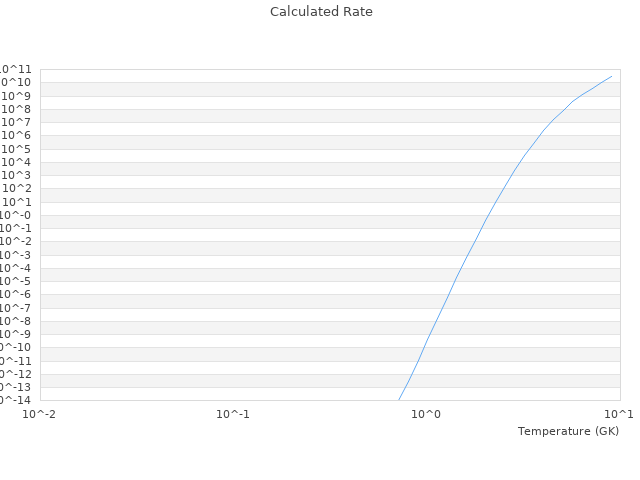

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
