Datapoints for p + i117 -> xe118
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.765573e-41 |
| 0.15 | 1.044410e-30 |
| 0.2 | 2.613963e-25 |
| 0.3 | 1.681751e-19 |
| 0.4 | 3.572476e-16 |
| 0.5 | 7.107936e-14 |
| 0.6 | 3.999126e-12 |
| 0.7 | 1.030162e-10 |
| 0.8 | 1.559045e-09 |
| 0.9 | 1.602461e-08 |
| 1 | 1.226056e-07 |
| 1.5 | 1.994823e-04 |
| 2 | 2.330879e-02 |
| 2.5 | 6.536326e-01 |
| 3 | 7.468529e+00 |
| 3.5 | 4.621699e+01 |
| 4 | 1.839736e+02 |
| 4.5 | 5.271344e+02 |
| 5 | 1.174942e+03 |
| 6 | 3.387401e+03 |
| 7 | 5.954179e+03 |
| 8 | 7.645161e+03 |
| 9 | 8.058239e+03 |
| 10 | 7.547759e+03 |

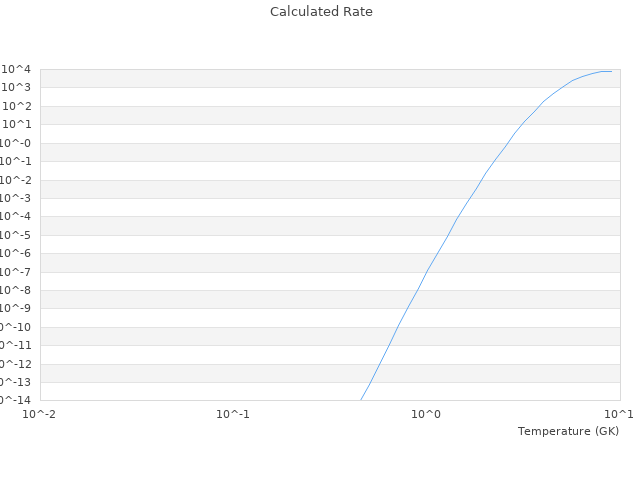

| View Graph | |
