Datapoints for p + i138 -> xe139
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.302746e-59 |
| 0.15 | 5.283160e-40 |
| 0.2 | 1.402385e-30 |
| 0.3 | 6.841233e-22 |
| 0.4 | 5.481586e-18 |
| 0.5 | 8.874589e-16 |
| 0.6 | 2.638673e-14 |
| 0.7 | 3.386099e-13 |
| 0.8 | 2.738594e-12 |
| 0.9 | 1.677672e-11 |
| 1 | 8.563629e-11 |
| 1.5 | 6.538773e-08 |
| 2 | 1.021811e-05 |
| 2.5 | 4.795996e-04 |
| 3 | 8.337425e-03 |
| 3.5 | 6.468541e-02 |
| 4 | 2.650184e-01 |
| 4.5 | 6.649321e-01 |
| 5 | 1.161774e+00 |
| 6 | 1.837163e+00 |
| 7 | 2.142975e+00 |
| 8 | 3.150136e+00 |
| 9 | 8.764905e+00 |
| 10 | 6.317018e+01 |

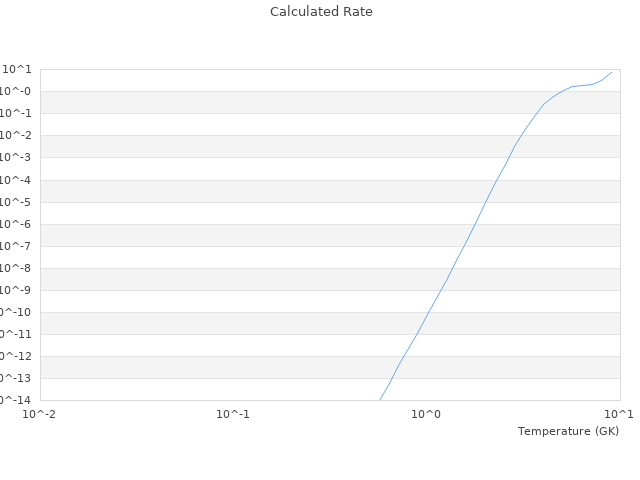

| View Graph | |
