Datapoints for p + i176 -> n + xe176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.984812e-41 |
| 0.15 | 7.046127e-30 |
| 0.2 | 2.504440e-24 |
| 0.3 | 1.765937e-18 |
| 0.4 | 3.516417e-15 |
| 0.5 | 6.479225e-13 |
| 0.6 | 3.405559e-11 |
| 0.7 | 8.278940e-10 |
| 0.8 | 1.192317e-08 |
| 0.9 | 1.173735e-07 |
| 1 | 8.643332e-07 |
| 1.5 | 1.216382e-03 |
| 2 | 1.292215e-01 |
| 2.5 | 3.433768e+00 |
| 3 | 3.875513e+01 |
| 3.5 | 2.471598e+02 |
| 4 | 1.058355e+03 |
| 4.5 | 3.404793e+03 |
| 5 | 8.889848e+03 |
| 6 | 3.983260e+04 |
| 7 | 1.277679e+05 |
| 8 | 3.490891e+05 |
| 9 | 9.068250e+05 |
| 10 | 2.409215e+06 |

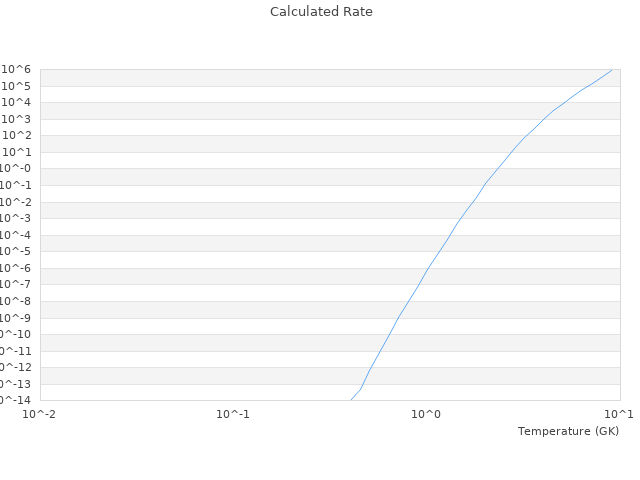

| View Graph | |
