Datapoints for p + xe145 -> cs146
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.469796e-61 |
| 0.15 | 9.387864e-41 |
| 0.2 | 4.020538e-31 |
| 0.3 | 2.452471e-22 |
| 0.4 | 1.841197e-18 |
| 0.5 | 2.620266e-16 |
| 0.6 | 6.815497e-15 |
| 0.7 | 7.746042e-14 |
| 0.8 | 5.640993e-13 |
| 0.9 | 3.163031e-12 |
| 1 | 1.499925e-11 |
| 1.5 | 9.298779e-09 |
| 2 | 1.369386e-06 |
| 2.5 | 6.435982e-05 |
| 3 | 1.143719e-03 |
| 3.5 | 9.087273e-03 |
| 4 | 3.785531e-02 |
| 4.5 | 9.548810e-02 |
| 5 | 1.655858e-01 |
| 6 | 2.481009e-01 |
| 7 | 2.616309e-01 |
| 8 | 3.345549e-01 |
| 9 | 7.860662e-01 |
| 10 | 4.682295e+00 |

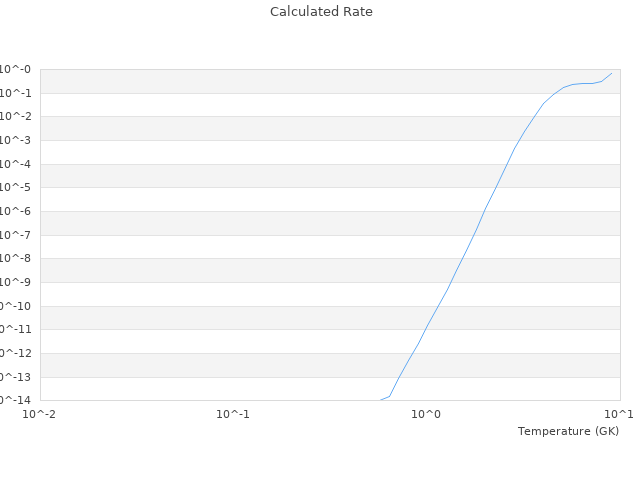

| View Graph | |
