Datapoints for p + xe156 -> cs157
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.759609e-63 |
| 0.15 | 1.390327e-42 |
| 0.2 | 7.738773e-33 |
| 0.3 | 6.474246e-24 |
| 0.4 | 6.061361e-20 |
| 0.5 | 1.033744e-17 |
| 0.6 | 3.147341e-16 |
| 0.7 | 4.117847e-15 |
| 0.8 | 3.407635e-14 |
| 0.9 | 2.148184e-13 |
| 1 | 1.134926e-12 |
| 1.5 | 1.090576e-09 |
| 2 | 2.210663e-07 |
| 2.5 | 1.320850e-05 |
| 3 | 2.816270e-04 |
| 3.5 | 2.568196e-03 |
| 4 | 1.185253e-02 |
| 4.5 | 3.217750e-02 |
| 5 | 5.861703e-02 |
| 6 | 9.135930e-02 |
| 7 | 9.411303e-02 |
| 8 | 1.118908e-01 |
| 9 | 2.348090e-01 |
| 10 | 1.208172e+00 |

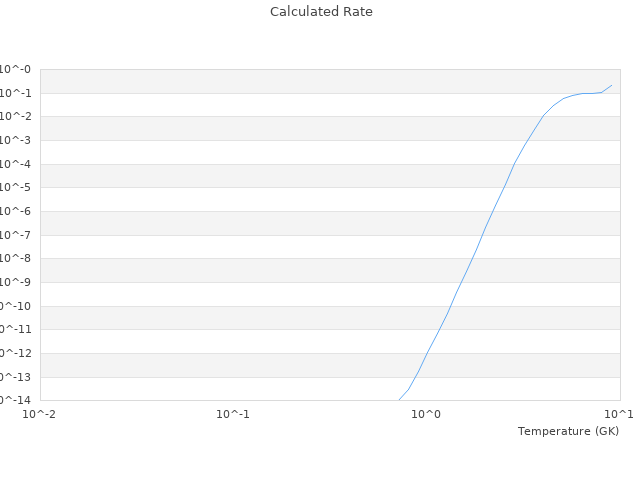

| View Graph | |
