Datapoints for p + xe168 -> cs169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.131212e-64 |
| 0.15 | 2.246838e-43 |
| 0.2 | 1.933896e-33 |
| 0.3 | 2.150418e-24 |
| 0.4 | 2.127836e-20 |
| 0.5 | 3.632848e-18 |
| 0.6 | 1.096274e-16 |
| 0.7 | 1.425279e-15 |
| 0.8 | 1.178655e-14 |
| 0.9 | 7.467599e-14 |
| 1 | 3.984214e-13 |
| 1.5 | 4.177356e-10 |
| 2 | 9.311247e-08 |
| 2.5 | 5.973722e-06 |
| 3 | 1.327565e-04 |
| 3.5 | 1.228219e-03 |
| 4 | 5.628032e-03 |
| 4.5 | 1.493500e-02 |
| 5 | 2.632993e-02 |
| 6 | 3.805111e-02 |
| 7 | 3.686342e-02 |
| 8 | 4.291370e-02 |
| 9 | 9.367319e-02 |
| 10 | 5.408827e-01 |

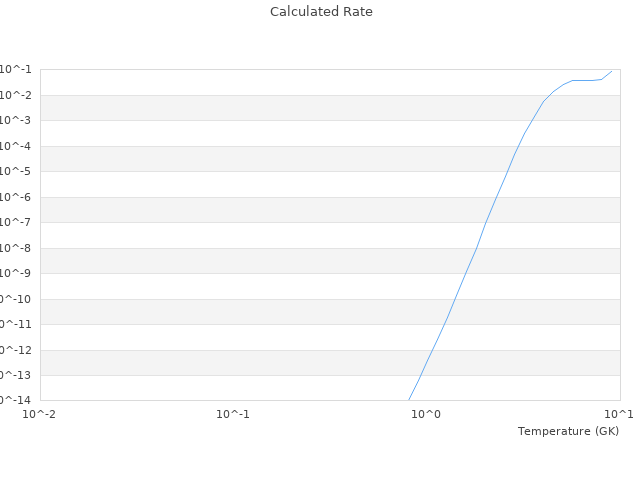

| View Graph | |
