Datapoints for p + xe169 -> cs170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.403477e-64 |
| 0.15 | 1.906315e-43 |
| 0.2 | 1.701787e-33 |
| 0.3 | 1.906908e-24 |
| 0.4 | 1.846432e-20 |
| 0.5 | 3.060041e-18 |
| 0.6 | 8.950981e-17 |
| 0.7 | 1.129185e-15 |
| 0.8 | 9.078353e-15 |
| 0.9 | 5.604409e-14 |
| 1 | 2.920193e-13 |
| 1.5 | 2.804187e-10 |
| 2 | 5.951594e-08 |
| 2.5 | 3.732889e-06 |
| 3 | 8.260559e-05 |
| 3.5 | 7.710715e-04 |
| 4 | 3.599204e-03 |
| 4.5 | 9.798376e-03 |
| 5 | 1.781396e-02 |
| 6 | 2.766286e-02 |
| 7 | 2.901910e-02 |
| 8 | 3.667859e-02 |
| 9 | 8.687111e-02 |
| 10 | 5.426344e-01 |

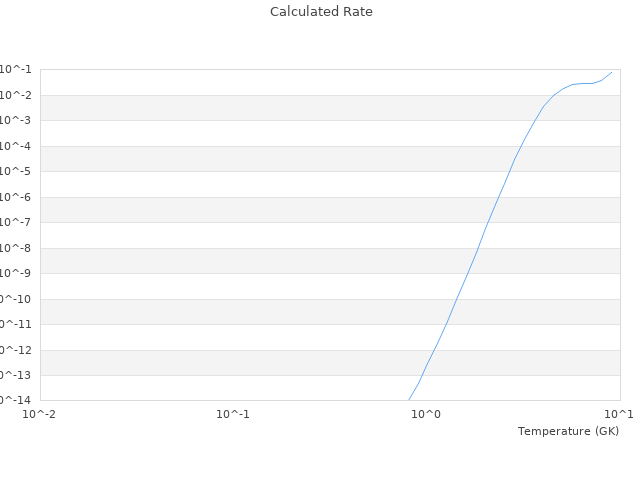

| View Graph | |
