Datapoints for n + cs120 -> he4 + i117
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.287742e+07 |
| 0.15 | 1.441255e+07 |
| 0.2 | 1.529369e+07 |
| 0.3 | 1.635376e+07 |
| 0.4 | 1.705797e+07 |
| 0.5 | 1.762468e+07 |
| 0.6 | 1.812772e+07 |
| 0.7 | 1.859866e+07 |
| 0.8 | 1.905321e+07 |
| 0.9 | 1.950008e+07 |
| 1 | 1.994452e+07 |
| 1.5 | 2.221980e+07 |
| 2 | 2.469236e+07 |
| 2.5 | 2.744267e+07 |
| 3 | 3.053084e+07 |
| 3.5 | 3.401674e+07 |
| 4 | 3.796596e+07 |
| 4.5 | 4.245292e+07 |
| 5 | 4.756334e+07 |
| 6 | 6.006907e+07 |
| 7 | 7.649685e+07 |
| 8 | 9.824027e+07 |
| 9 | 1.272303e+08 |
| 10 | 1.661606e+08 |

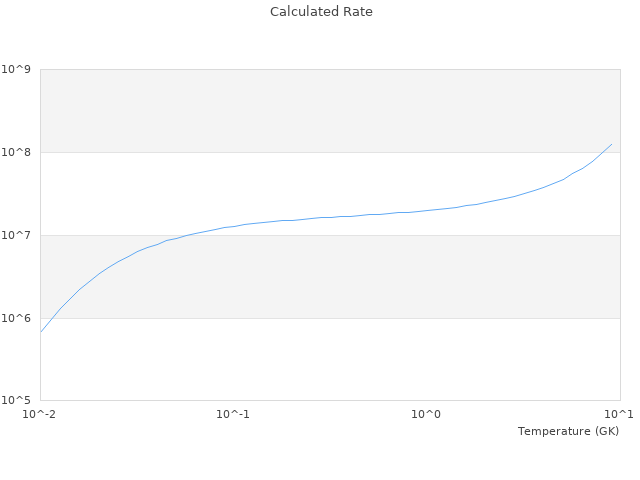

| View Graph | |
