Datapoints for p + ba116 -> la117
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.975969e-45 |
| 0.15 | 8.610725e-33 |
| 0.2 | 5.199079e-27 |
| 0.3 | 5.664685e-21 |
| 0.4 | 1.746228e-17 |
| 0.5 | 4.966016e-15 |
| 0.6 | 3.826609e-13 |
| 0.7 | 1.273734e-11 |
| 0.8 | 2.345601e-10 |
| 0.9 | 2.775148e-09 |
| 1 | 2.328140e-08 |
| 1.5 | 3.671549e-05 |
| 2 | 2.814710e-03 |
| 2.5 | 4.778534e-02 |
| 3 | 3.449361e-01 |
| 3.5 | 1.467323e+00 |
| 4 | 4.396267e+00 |
| 4.5 | 1.028270e+01 |
| 5 | 1.996649e+01 |
| 6 | 4.930872e+01 |
| 7 | 7.735014e+01 |
| 8 | 8.120445e+01 |
| 9 | 5.756903e+01 |
| 10 | 2.730195e+01 |

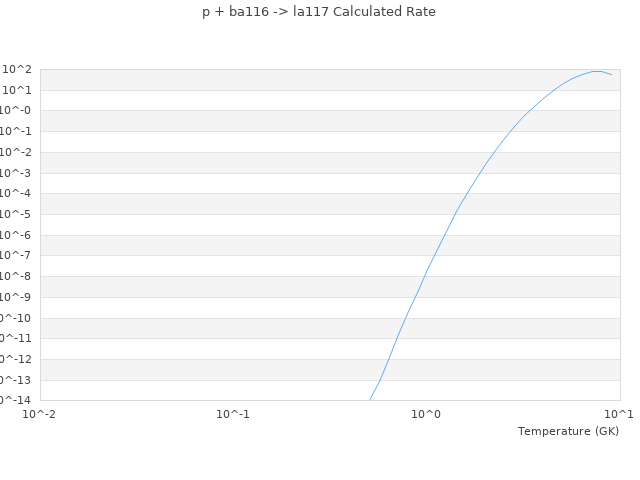

| View Graph | |
