Datapoints for he4 + cs174 -> p + ba177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.730936e-247 |
| 0.3 | 4.165794e-163 |
| 0.4 | 1.953414e-122 |
| 0.5 | 4.147955e-99 |
| 0.6 | 3.266355e-84 |
| 0.7 | 5.915631e-74 |
| 0.8 | 1.786024e-66 |
| 0.9 | 9.118136e-61 |
| 1 | 3.025879e-56 |
| 1.5 | 1.931851e-42 |
| 2 | 1.079709e-34 |
| 2.5 | 2.679279e-29 |
| 3 | 3.319396e-25 |
| 3.5 | 5.465217e-22 |
| 4 | 2.012138e-19 |
| 4.5 | 2.321813e-17 |
| 5 | 1.077288e-15 |
| 6 | 3.227285e-13 |
| 7 | 1.871996e-11 |
| 8 | 5.320723e-10 |
| 9 | 1.529232e-08 |
| 10 | 7.923799e-07 |

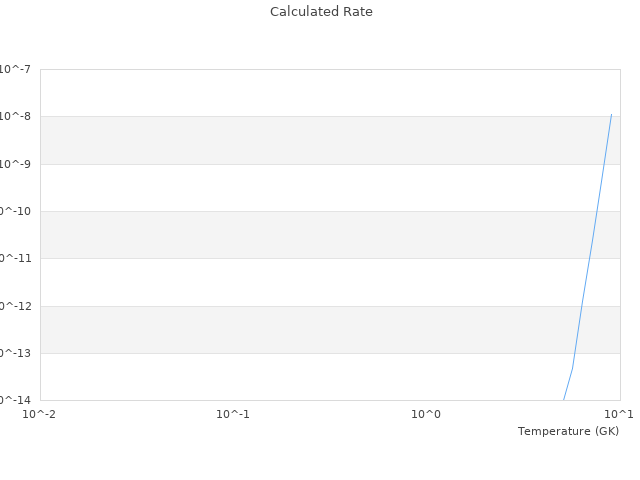

| View Graph | |
