Datapoints for he4 + ce120 -> nd124
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 8.886402e-217 |
| 0.2 | 5.634981e-164 |
| 0.3 | 2.732105e-109 |
| 0.4 | 1.447417e-81 |
| 0.5 | 4.962907e-65 |
| 0.6 | 3.722075e-54 |
| 0.7 | 1.645856e-46 |
| 0.8 | 7.276817e-41 |
| 0.9 | 1.556707e-36 |
| 1 | 4.136469e-33 |
| 1.5 | 5.469886e-23 |
| 2 | 7.379136e-18 |
| 2.5 | 1.261960e-14 |
| 3 | 2.411905e-12 |
| 3.5 | 1.236404e-10 |
| 4 | 2.603461e-09 |
| 4.5 | 2.863738e-08 |
| 5 | 1.916377e-07 |
| 6 | 2.871989e-06 |
| 7 | 1.562281e-05 |
| 8 | 4.492737e-05 |
| 9 | 8.972656e-05 |
| 10 | 1.535562e-04 |

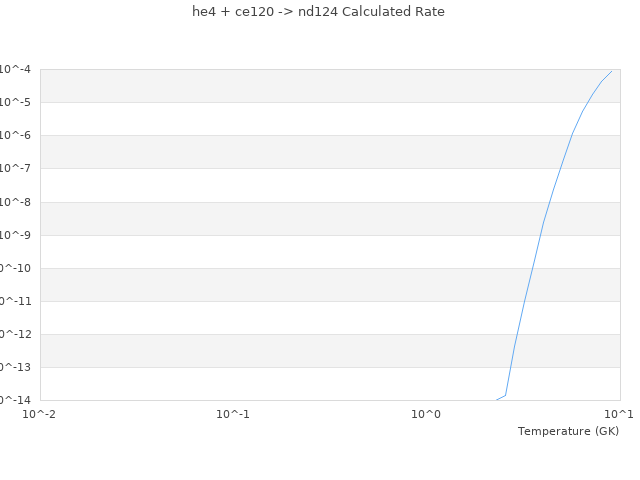

| View Graph | |
