Datapoints for nd136 -> he4 + ce132
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.085171e-226 |
| 0.15 | 2.152030e-154 |
| 0.2 | 5.814021e-115 |
| 0.3 | 2.359185e-73 |
| 0.4 | 3.615362e-52 |
| 0.5 | 1.340479e-39 |
| 0.6 | 2.167925e-31 |
| 0.7 | 1.187826e-25 |
| 0.8 | 1.998321e-21 |
| 0.9 | 3.506125e-18 |
| 1 | 1.325448e-15 |
| 1.5 | 9.797266e-08 |
| 2 | 2.424539e-03 |
| 2.5 | 2.852650e+00 |
| 3 | 6.516994e+02 |
| 3.5 | 4.991638e+04 |
| 4 | 1.682736e+06 |
| 4.5 | 2.947888e+07 |
| 5 | 3.018922e+08 |
| 6 | 8.993494e+09 |
| 7 | 7.893967e+10 |
| 8 | 3.151588e+11 |
| 9 | 8.088609e+11 |
| 10 | 1.769533e+12 |

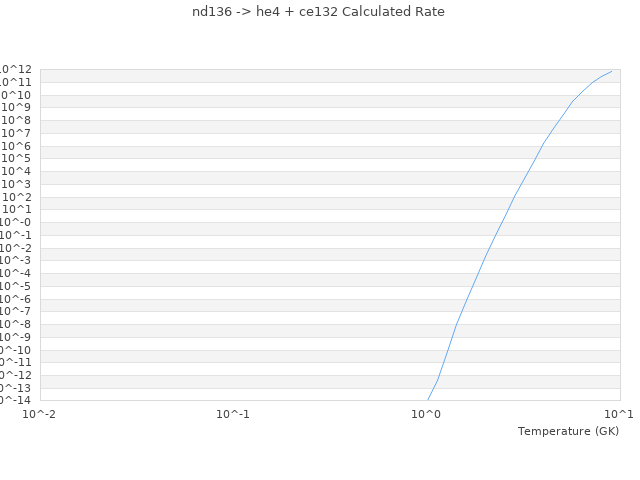

| View Graph | |
