Datapoints for n + nd166 -> he4 + ce163
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 6.498666e-251 |
| 0.3 | 1.081078e-166 |
| 0.4 | 3.506426e-123 |
| 0.5 | 5.710849e-97 |
| 0.6 | 1.188734e-79 |
| 0.7 | 1.819575e-67 |
| 0.8 | 1.733738e-58 |
| 0.9 | 1.252232e-51 |
| 1 | 3.098046e-46 |
| 1.5 | 1.362393e-30 |
| 2 | 6.571766e-23 |
| 2.5 | 4.197528e-18 |
| 3 | 1.204786e-14 |
| 3.5 | 6.046610e-12 |
| 4 | 9.839019e-10 |
| 4.5 | 7.138323e-08 |
| 5 | 2.773050e-06 |
| 6 | 9.842497e-04 |
| 7 | 7.826895e-02 |
| 8 | 1.960848e+00 |
| 9 | 1.968584e+01 |
| 10 | 9.550613e+01 |

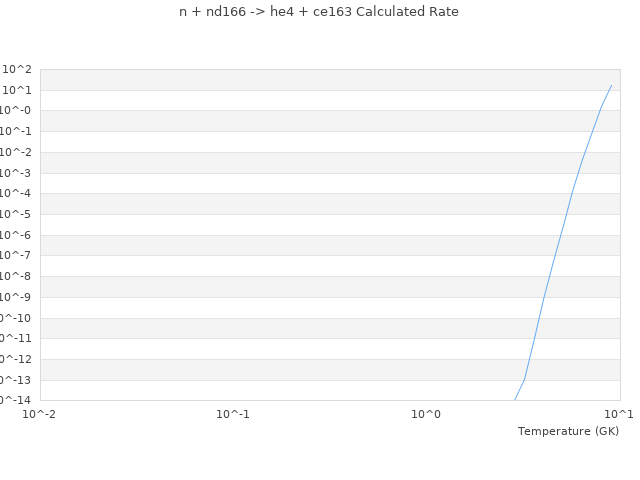

| View Graph | |
