Datapoints for nd170 -> he4 + ce166
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-315 |
| 0.3 | 6.047655e-212 |
| 0.4 | 2.436965e-158 |
| 0.5 | 1.219759e-125 |
| 0.6 | 1.110506e-103 |
| 0.7 | 5.888489e-88 |
| 0.8 | 3.661867e-76 |
| 0.9 | 5.324312e-67 |
| 1 | 1.110237e-59 |
| 1.5 | 9.118155e-38 |
| 2 | 1.017852e-26 |
| 2.5 | 6.274856e-20 |
| 3 | 2.981520e-15 |
| 3.5 | 8.540188e-12 |
| 4 | 4.029295e-09 |
| 4.5 | 5.432850e-07 |
| 5 | 2.911990e-05 |
| 6 | 1.148167e-02 |
| 7 | 6.953592e-01 |
| 8 | 1.136148e+01 |
| 9 | 7.121044e+01 |
| 10 | 2.181365e+02 |

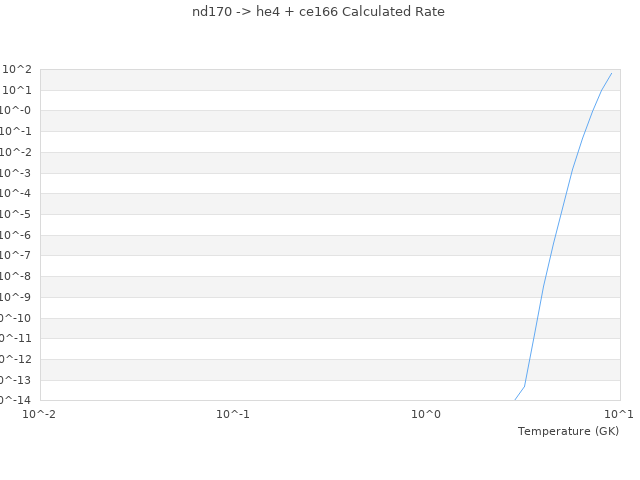

| View Graph | |
